24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
| محل منبع | چین، سوژو |
|---|---|
| نام تجاری | SUPT MOTION |
| گواهی | ISO9001,CE,3C |
| شماره مدل | سری VCAB |
| مقدار حداقل تعداد سفارش | 2 عدد |
| قیمت | $102-$160 |
| جزئیات بسته بندی | بسته بندی سفارشی و غیره |
| زمان تحویل | <i>1-5pcs ,5 days .</i> <b>1-5 عدد، 5 روز.</b> <i>>20pcs ,To be negotiated</i> <b>> 20 عدد، قا |
| شرایط پرداخت | T/T |
| قابلیت ارائه | مورد مذاکره قرار گیرد |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| گارانتی | 3 ماه - 1 سال | مدل محصول | VCAB0033-0099-00A |
|---|---|---|---|
| وزن (گرم) | 5.87 | نیروی اوج (N) | 33 |
| کل ضربه (میلی متر) | 9.9 | حداکثر ولتاژ (V) | 24 |
| برنامه | محصول اتوماتیک | دقت موقعیت یابی | بالا |
| نوع محصول | موتور سیم پیچ صدای خطی | تخفیف | قلم مو |
| نیروی پیوسته (N) | 8N | فیلدهای کاربردی | 3C الکترونیک، نیمه هادی، اتوماسیون، اپتیک، تجهیزات بازرسی |
توضیحات محصول

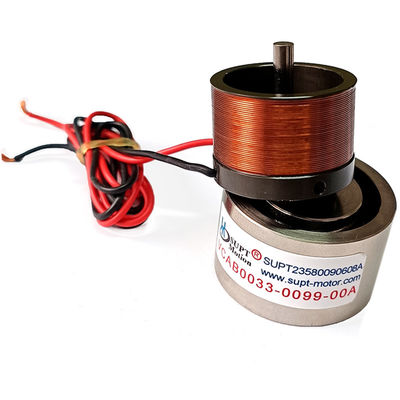

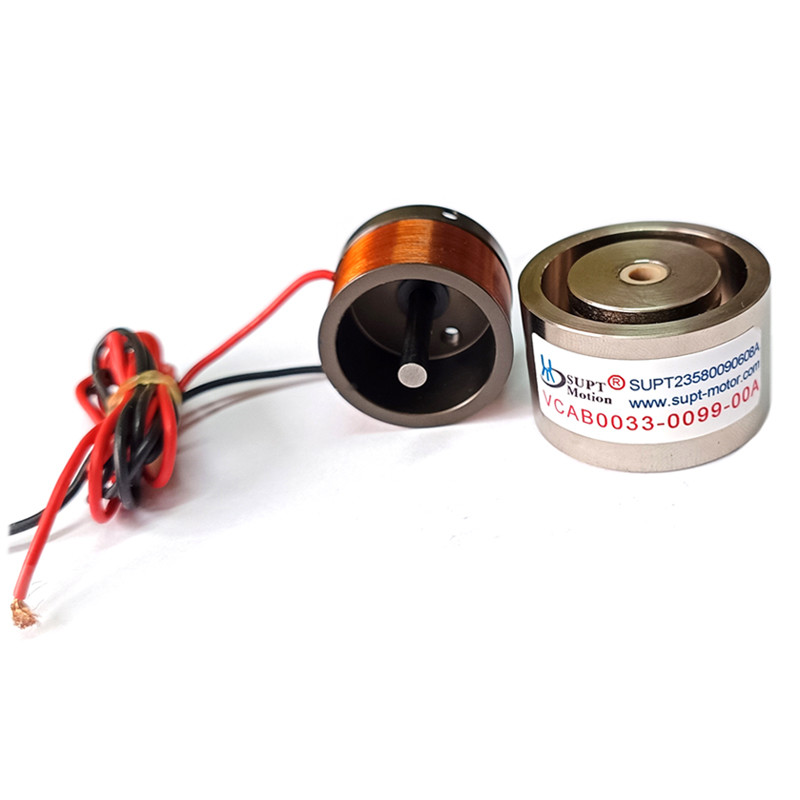

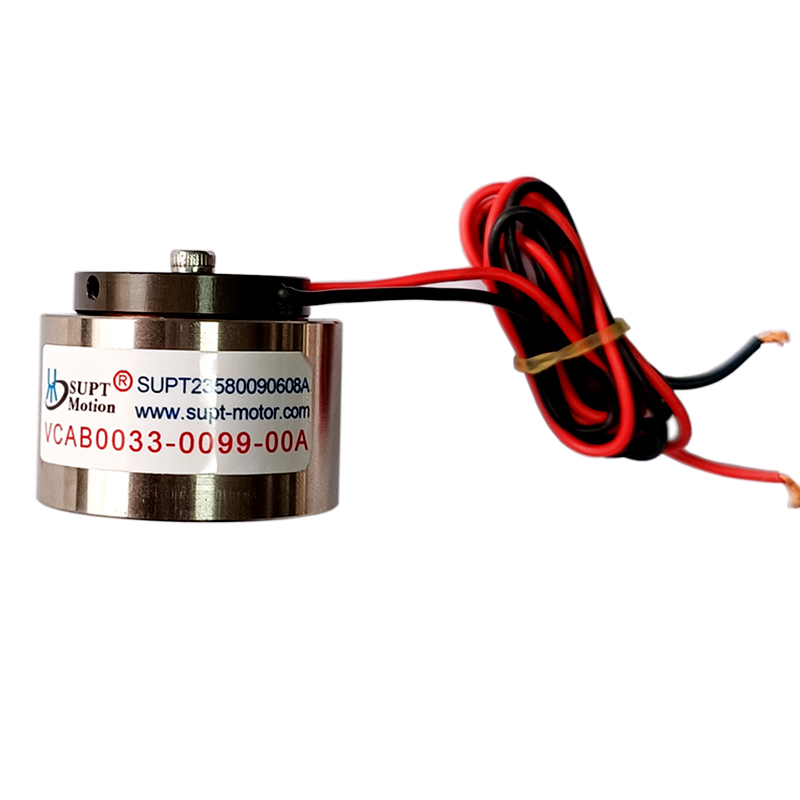

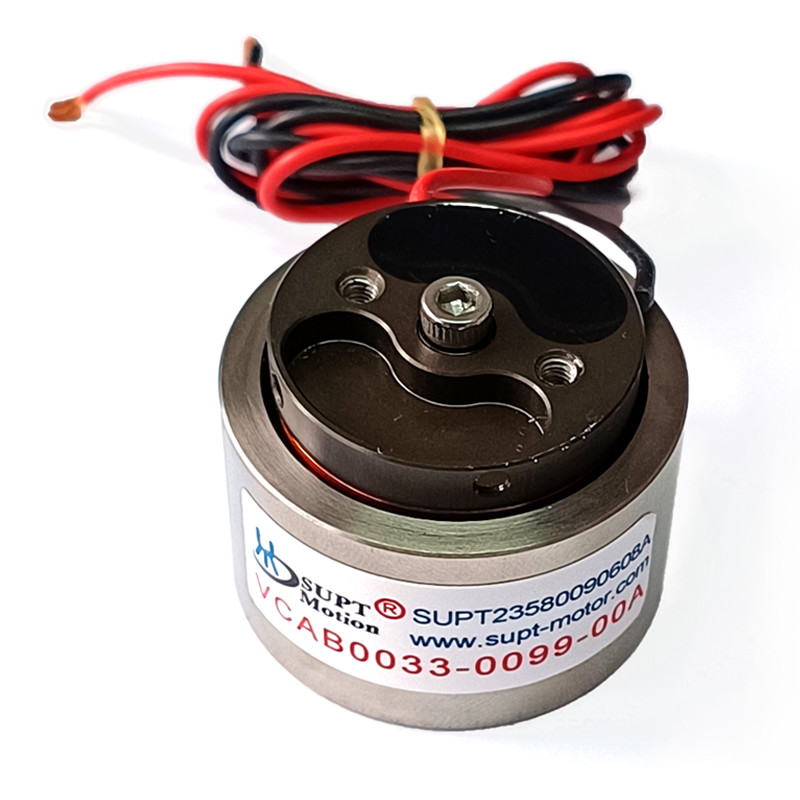

Product Description:
SUPT VCAB series linear voice coil motors are direct-drive actuators specifically designed for high-speed, micron-level precision motion. Featuring a coreless design, they achieve advanced performance including high frequency response, high speed, high acceleration, high precision, frictionless operation, and zero backlash. They are widely used in 3C manufacturing, visual inspection, semiconductors, medical instruments, and scientific research equipment.
Linear Voice Coil Motors have become one of the most essential precision actuators in the 3C electronics industry due to their high frequency response, ultra-precise positioning, high acceleration, and frictionless motion structure. As smartphones, tablets, wearables, and laptops continue to evolve toward thinner form factors and higher consistency, automation equipment requires micron-level accuracy and millisecond-level dynamic performance. Linear Voice Coil Motors are uniquely suited to meet these demanding requirements.
In 3C assembly processes, Linear Voice Coil Motors are widely used in high-speed pick-and-place systems, precision press-fit stations, laser welding, dispensing control, FPC alignment, camera module production, OIS calibration, and display module assembly. Thanks to their direct-drive linear force output, with no cogging, no backlash, and no mechanical transmission, Linear Voice Coil Motors provide nanometer-level positional resolution. This enables highly stable motion for tasks that require extremely fine alignment, precise press-fit depth control, or real-time trajectory adjustments.
Features:
- 9.9 mm stroke suitable for rapid short-distance motion
- High frequency response for fast inspection and micro-adjustment
- High thrust density enabling strong acceleration
- Coreless structure with zero cogging
- 24V input for easy industrial integration
- Compact and lightweight for embedded modules and fixtures
General Specifications (Varies by Model)
- Rated Voltage: 24V
- Continuous Force: 8 N
- Peak Force: 33 N
- Stroke: 5–60 mm / customizable
- Frequency Response: ≥ 100 Hz
- Repeatability: ≤1–3 µm
- Structure: Coreless coil + high-energy magnet array
- Cooling: Natural convection (air/liquid cooling optional)
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Precision assembly & micro-positioning
- Optical alignment modules
- Compact test machines
- Medical analysis / microfluidics
- Research laboratory stages
