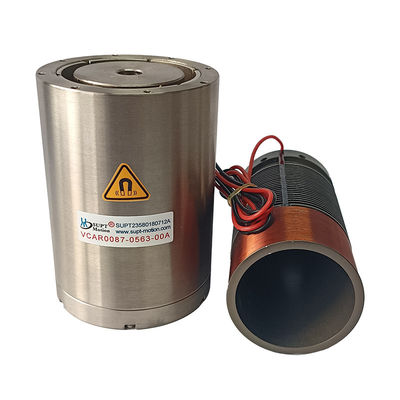

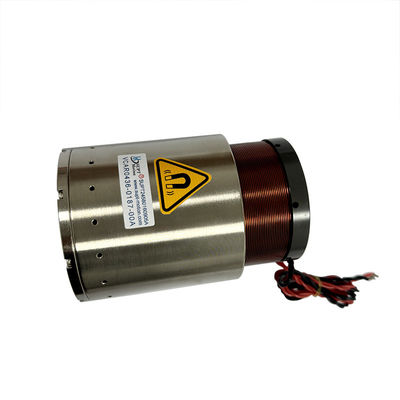

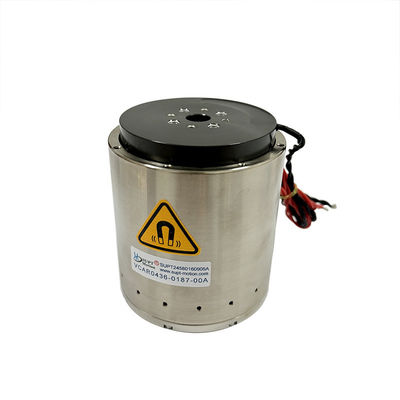

High Speed Micro VCM Voice Coil Motor For 3D Inspection Optical Systems
| محل منبع | چین، سوژو |
|---|---|
| نام تجاری | SUPT MOTION |
| گواهی | CE,3C, ISO9001 |
| شماره مدل | سری VCAR |
| مقدار حداقل تعداد سفارش | 1 عدد |
| قیمت | $111-$200 |
| جزئیات بسته بندی | بسته بندی سفارشی و غیره |
| زمان تحویل | <i>1-5pcs ,5 days .</i> <b>1-5 عدد، 5 روز.</b> <i>>20pcs ,To be negotiated</i> <b>> 20 عدد، قا |
| شرایط پرداخت | T/T |
| قابلیت ارائه | مورد مذاکره قرار گیرد |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| سکته مغزی | 4 میلی متر | مدل | VCAR0044-0040-00A |
|---|---|---|---|
| نیروی اوج | 44N | وزن | 46.5 گرم |
| برنامه | محصول اتوماتیک | رنگ | نقره/سیاه |
| نیروی پیوسته (N) | 16.3 | تخفیف | قلم مو |
| محافظت از ویژگی | کاملاً محصور | استفاده کنید | صنایع پزشکی، نیمه هادی، هوافضا، ابزارهای اندازه گیری دقیق، خودروسازی و اتوماسیون |
| تایپ کنید | میکرو موتور |
توضیحات محصول
Product Description:
Voice coil motors, characterized by high acceleration, high precision, rapid response, high speed and limited travel.The SUPTMOTION voice coil motor model VCAR0044-0040-00A features a 4mm travel range. They enable ultra-high precision positioning within 3D inspection systems, with their core function being to achieve minute, swift, and accurate displacement. This ensures optical systems efficiently capture high-quality 3D information.
Voice coil motors are commonly employed in 3D inspection optical systems for focusing microscopes, white light interferometers, and planar scanning. Within focusing microscopes, the motor's closed-loop control continuously monitors image sharpness variations, dynamically adjusting drive current until it stabilizes at the optimal focal plane. Its precision displacement enables nanometer-level vertical movement of the objective lens along the Z-axis, enabling rapid autofocus.
In white-light interferometers, the interferometer module is mounted on a precision stage driven by a voice coil motor. This drives the entire interferometer module to move vertically along the Z-axis, enabling uniform and precise scanning of the height range of the measured object. The smoothness, linearity, and high resolution of the voice coil motor's motion determine the measurement accuracy of the three-dimensional topography.
Features:
Features of Voice Coil Motors:
High responsiveness, high acceleration, High speed,low-mass coil.No cogging effect, zero hysteresis.
Simple structure, lightweight, high-frequency response, smooth operation.
Stroke: 1mm-63mm.
Thrust: 0.7N-3000N.
Type: Cylindrical voice coil motor,Micro voice coil motor.VCM Voice Coil Motor
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
SUPT MOTION Voice Coil Motor Applications:
Voice coil motors are primarily used in medical, semiconductor, aerospace, automotive, and other fields, including valve actuators, small precision replacement measuring instruments, vibration platforms, and active vibration control systems. The market primarily targets the medical, semiconductor, aerospace, and automation industries.
1. Semiconductor Industry: Wiring, cutting, drilling, conveying systems, welding, robotics.
2. Field Valve Operation: Pneumatic valves for metering valves, pressure testing systems, chemical injection systems.
3. Micromechanics Industry: Feeding systems, micro-drilling, precision stamping.
4. Vibration Systems: Vibration tables, vibration platforms.
5. Medical field: Microinjection systems, respiratory equipment, diagnostic instruments.
